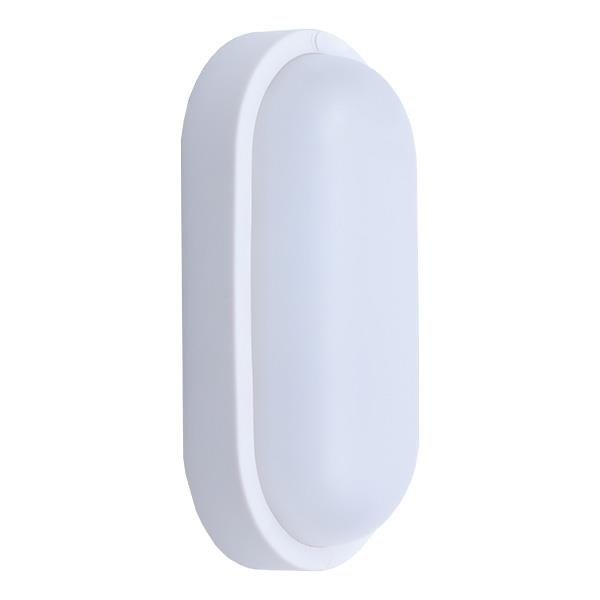

PENDANT WALL OVAL LED 12W 900Lm 160X90X51mm 12/24V AC/DC 6500K IP54 PLUS WHITE ARTE ILLUMINA
Code: 145-20040
TECHNICAL DATA
Series Number:
PLUS
Supply Voltage (V):
12-24V
Nominal Power (W):
12W
Amperage (A):
1000mA
Operating Frequency (Hz):
50/60Hz
Led Type:
SMD2835
Color Temperature (K):
6500K
Luminous Flux (lm):
900Lm
Lumen/ Watt:
75Lm/Watt
Lumen/ Chip:
65Lm/Chip
Watt/ Chip:
0.5Watt/Chip
Total Chips:
28
Chip Size:
MTC
Chip Brand:
Eaglerise
Driver Brand:
Ναι/Yes
Included Driver:
>0.50
Power Factor (PF):
>80
Life Time (h):
25000h
Starting Τime (sec):
<0.5Sec
Switching Cycles (ON/ OFF):
12500
Energy Class:
G
Ingress Protection (IP):
IP54
Impact Resistant (IK):
IK06
Operating Temperature °C:
-25°C - +45°C
Beam Angle:
110°
Product Color:
Λευκό/White
Product Material:
Πλαστικό+Πολυπροπυλένιο/Plastic+PP
Product Net Weight (kg):
0.150
Product Gross Weight (kg):
0.200
Packing (pcs):
1/32
Packaging:
White Box + Sticker Label
Height:
51mm
Width:
91mm
Length:
160mm
Class I:
Class II
Guarantee Eurolamp:
2 Χρόνια/2 Years
Certifications:
Ναι/Yes
CE Mark:
Ναι/Yes
Connection Type:
Κλέμα/Terminal Block
Grounding:
Όχι/No
