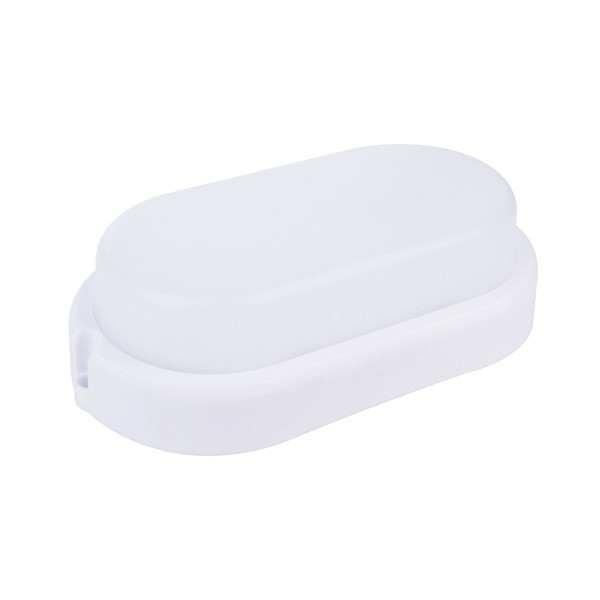

WALL LAMP LED PLASTIC OVAL 11W 168X92X48mm 4000Κ WHITE ARTE ILLUMINA
Code: 145-20410
TECHNICAL DATA
Supply Voltage (V):
220-240V
Nominal Power (W):
11W
Amperage (A):
50mA
Operating Frequency (Hz):
50/60Hz
Led Type:
SMD2835
Color Temperature (K):
4000K
Luminous Flux (lm):
990Lm
Lumen/ Watt:
90Lm/Watt
Lumen/ Chip:
60Lm/Chip
Watt/ Chip:
0.5Watt/Chip
Total Chips:
28
Chip Size:
FB
Chip Brand:
WSLX
Driver Brand:
Ναι/Yes
Included Driver:
>0.70
Power Factor (PF):
>80
Life Time (h):
30000h
Starting Τime (sec):
<0.5Sec
Switching Cycles (ON/ OFF):
25000
Energy Class:
F
Ingress Protection (IP):
IP54
Impact Resistant (IK):
IK06
Operating Temperature °C:
-25°C - +45°C
Beam Angle:
110°
Product Color:
Λευκό/White
Product Material:
Πλαστικό/Plastic
Product Net Weight (kg):
0.110
Product Gross Weight (kg):
0.150
Packing (pcs):
1/20
Packaging:
Color Box
Height:
48mm
Width:
92mm
Length:
168mm
Class I:
Class II
Guarantee Eurolamp:
2 Χρόνια/2 Years
Certifications:
Ναι/Yes
CE Mark:
Ναι/Yes
Connection Type:
Κλέμα/Terminal Block
Grounding:
Όχι/No
www.eurolamp.gr
ISO 9001:2015 ISO 14001:2015
