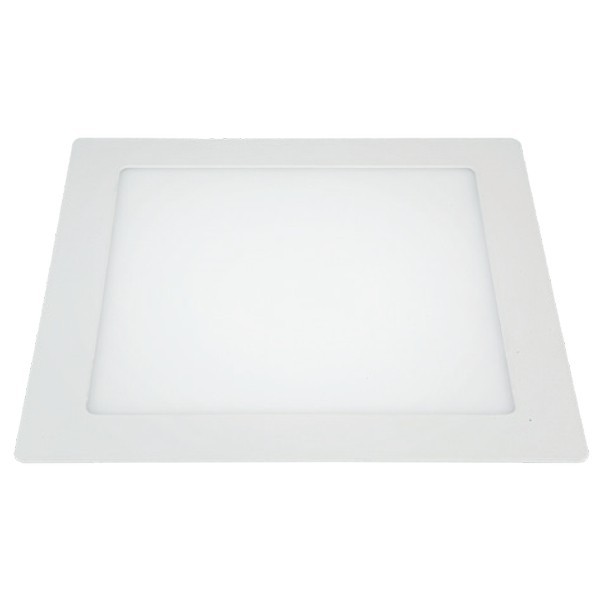

RECESSED LED SLIM LIGHT 20W 85-265V 3CCT 220X220 WHITE PLUS
Code: 145-68120
TECHNICAL DATA
Series Number:
PLUS
Supply Voltage (V):
85-265V
Max output VA power:
59 VDC
Nominal Power (W):
24W
Amperage (A):
208mA
Operating Frequency (Hz):
50/60Hz
Led Type:
SMD2835
Color Temperature (K):
3CCT(3000K/4000K/6500K)
Luminous Flux (lm):
1920LM
Lumen/ Watt:
100lm/Watt
Lumen/ Chip:
16lm/Chip
Watt/ Chip:
0.2W/Chip
Total Chips:
120pcs
Chip Size:
2835
Chip Brand:
Sanan
Driver Brand:
LNGY
Included Driver:
Ναι/Yes
Power Factor (PF):
>0.50
Color Rendering Index CRI (Ra):
>80
Flicker Free:
Ναι/Yes
Life Time (h):
30000h
Starting Τime (sec):
0.5 sec
Switching Cycles (ON/ OFF):
15000
Dimmable:
Όχι/No
Energy Class:
G
Ingress Protection (IP):
IP44
Impact Resistant (IK):
IK03
Operating Temperature °C:
-20°C - +40°C
Beam Angle:
120°
Product Color:
Λευκό/ White
Product Material:
Aluminium/Plastic/Iron
Unified Glare Rating UGR:
N.A.
Product Net Weight (kg):
0.340
Product Gross Weight (kg):
0.500
Packing (pcs):
1/20
Height:
7.5mm
Width:
220mm
Length:
220mm
Cutting Dimension:
205mm
Guarantee Eurolamp:
3 Χρόνια/3 Years
Installation Height:
4-6mtr
Insulation Rating:
CLASS II
Connection Type:
Καλώδιο/Wire
