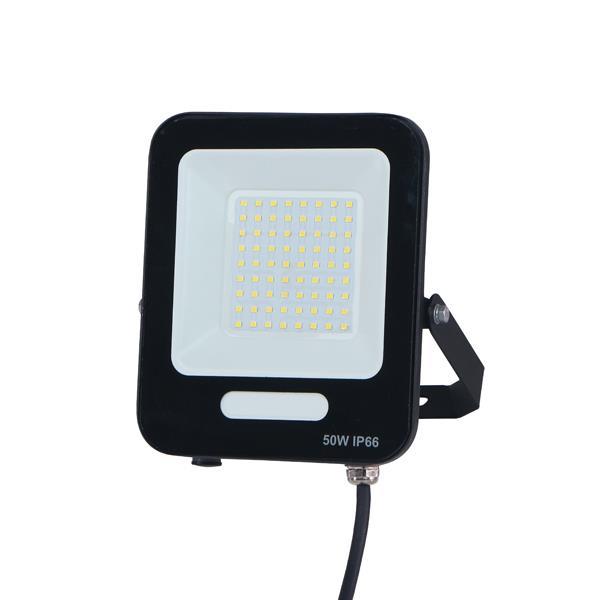

PROJECTOR LED SMD 50W BLACK IP66 3000K PLUS
Code: 147-69011
TECHNICAL DATA
Series Number:
PLUS
Supply Voltage (V):
160-265V
Nominal Power (W):
50W
Amperage (A):
210mA
Operating Frequency (Hz):
50/60Hz
Led Type:
SMD2835
Color Temperature (K):
3000K
Luminous Flux (lm):
6000lm
Lumen/ Watt:
120Lm/Watt
Lumen/ Chip:
130Lm/chip
Watt/ Chip:
1W/Chip
Total Chips:
16pcs
Chip Size:
SMD2835
Chip Brand:
Sanan
Driver Brand:
EVR
Included Driver:
Ενσωματωμένο στην πλακέτα/ Embedded in plate
Power Factor (PF):
>0.90
Color Rendering Index CRI (Ra):
>70
Life Time (h):
30000h
Starting Τime (sec):
0.5 sec
Switching Cycles (ON/ OFF):
25000
Dimmable:
Όχι/No
Energy Class:
E
Ingress Protection (IP):
IP66
Impact Resistant (IK):
IK06
Operating Temperature °C:
-20°C - +50°C
Beam Angle:
120°
Product Color:
Μαύρο/Black
Product Material:
Αλουμίνιο - Γυαλί / Aluminium - Glass
Product Net Weight (kg):
0.540
Product Gross Weight (kg):
0.612
Packing (pcs):
1/20
Packaging:
Color Box
Height:
31.7mm
Width:
170mm
Length:
146.2mm
Guarantee Eurolamp:
3 Χρόνια/3 Years
Certifications:
Ναι/Yes
CE Mark:
Ναι/Yes
Installation Height:
2-3mtr
Insulation Rating:
Class I
Connection Type:
Καλώδιο/Wire
Grounding:
Ναι/Yes
Cable Length:
150mm
Cable Cross Section:
3x1.00mm²
Product Info:
Γαλβανιζέ Βίδες / Galvanized Bolts
www.eurolamp.gr
ISO 9001:2015 ISO 14001:2015
