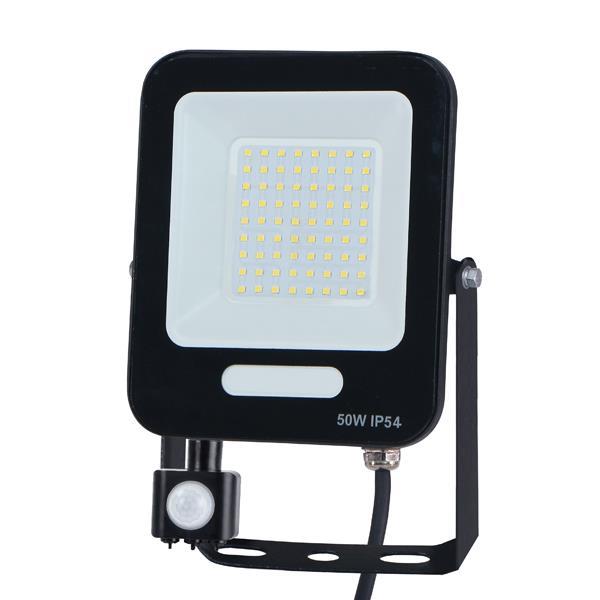

PROJECTOR LED SMD WITH ROTADED MOVEMENT DETECTOR 50W BLACK IP54 6500K PLUS
Code: 147-69069
TECHNICAL DATA
Series Number:
PLUS
Supply Voltage (V):
160-265V
Nominal Power (W):
50W
Amperage (A):
210mA
Operating Frequency (Hz):
50/60Hz
Led Type:
SMD2835
Color Temperature (K):
6500K
Luminous Flux (lm):
6000lm
Lumen/ Watt:
120Lm/Watt
Lumen/ Chip:
130Lm/chip
Watt/ Chip:
1W/Chip
Total Chips:
81pcs
Chip Size:
SMD2835
Chip Brand:
Sanan
Driver Brand:
EVR
Included Driver:
Ενσωματωμένο στην πλακέτα/ Embedded in plate
Power Factor (PF):
>0.90
Color Rendering Index CRI (Ra):
>70
Life Time (h):
30000h
Starting Τime (sec):
0.5 sec
Switching Cycles (ON/ OFF):
25000
Dimmable:
Όχι/No
Energy Class:
E
Ingress Protection (IP):
IP54
Impact Resistant (IK):
IK06
Operating Temperature °C:
-20°C - +50°C
Beam Angle:
120°
Product Color:
Μαύρο/Black
Product Material:
Αλουμίνιο - Γυαλί / Aluminium - Glass
Product Net Weight (kg):
0.600
Product Gross Weight (kg):
0.700
Packing (pcs):
1/20
Packaging:
Color Box
Height:
31.7mm
Width:
170mm
Length:
146.2mm
Guarantee Eurolamp:
3 Χρόνια/3 Years
Certifications:
Ναι/Yes
CE Mark:
Ναι/Yes
Installation Height:
2-3mtr
Insulation Rating:
Class I
Connection Type:
Καλώδιο/Wire
Grounding:
Ναι/Yes
Cable Length:
150mm
Cable Cross Section:
3x1.00mm²
Detection Type:
Αισθητήρας Μικροκυμάτων/ Microwave Sensor
Product Info:
Γαλβανιζέ Βίδες / Galvanized Bolts
Product Info:
Turning the SENS dial anticlockwise will decrease the detection range (2m-10m). Turning the TIME dial anticlockwise will decrease the hold time (10 seconds-7minutes). Turning the LUX dial anticlockwise will restrict activation to lower light conditions(3
Product Info:
Detection Range: 120° Working Temperature: -20~+40°C Working Humidity: <24%
